Features and Advantages ■ Low investment costs due to individual design ■ Flexibility due to a simple-to-extend system ■ Space saving due to a compact design ■ Low maintenance costs due to easy maintenance and LocIn changes

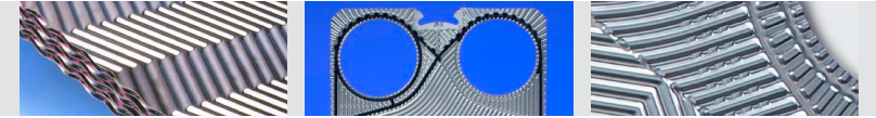

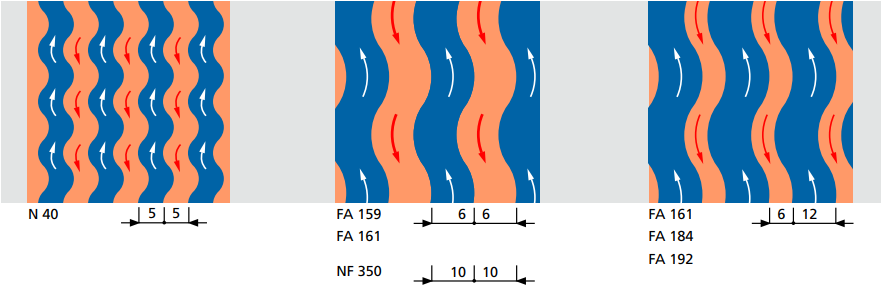

Free Flow Plate Heat Exchangers Cross sections of the GEA PHE Systems Free Flow plates
| |
| The new plate heat exchanger generation Higher performance, more applications and even less investment: the new versatile NT Series fulfills the requirements of the industry and sets economical standards for future plate heat exchangers. Features and advantages OptiWave-design The optimised corrugation leads to a good fluid distribution across the whole plate width.This leads to the highest heat exchange rates being achieved with the lowest pressure drop. PosLoc-fixation With the new NT Series, we have Introduced a self-centering plate system. The result being a stable,perfectly aligned plate pack, with the gaskets lying directly above each other leading to a longer lifetime. EcoLoc-gasket system The new, glueless EcoLoc gasket ensures a quick and uncomplicated exchange of gaskets
| |

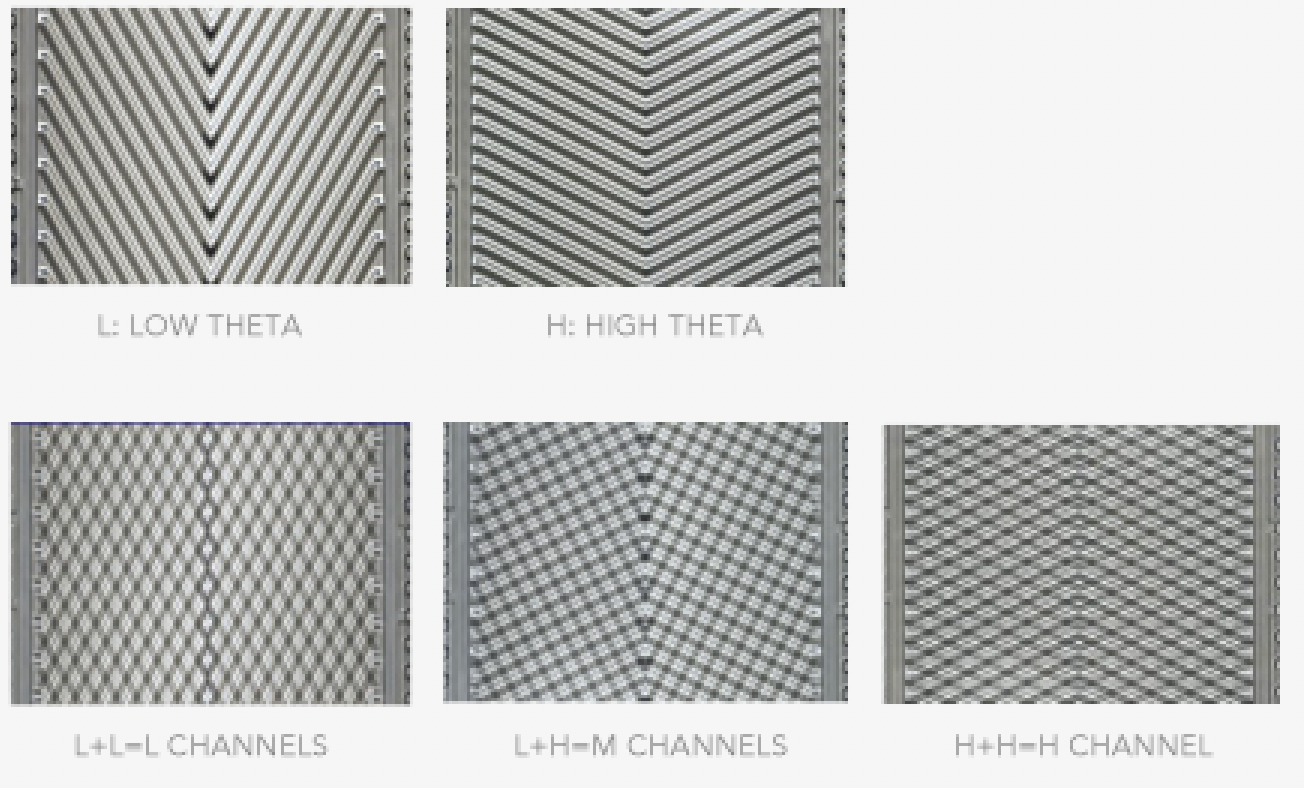

Two types of corrugated plate(L and H)
• We choose between L, M and H channels • Tailor-make it for the specific duty • The Medium Theta cassette is a mixture of High and Low Theta plates. New plate cassettes in alternative material can be inserted when more corrosive cooling water is introduced
| |

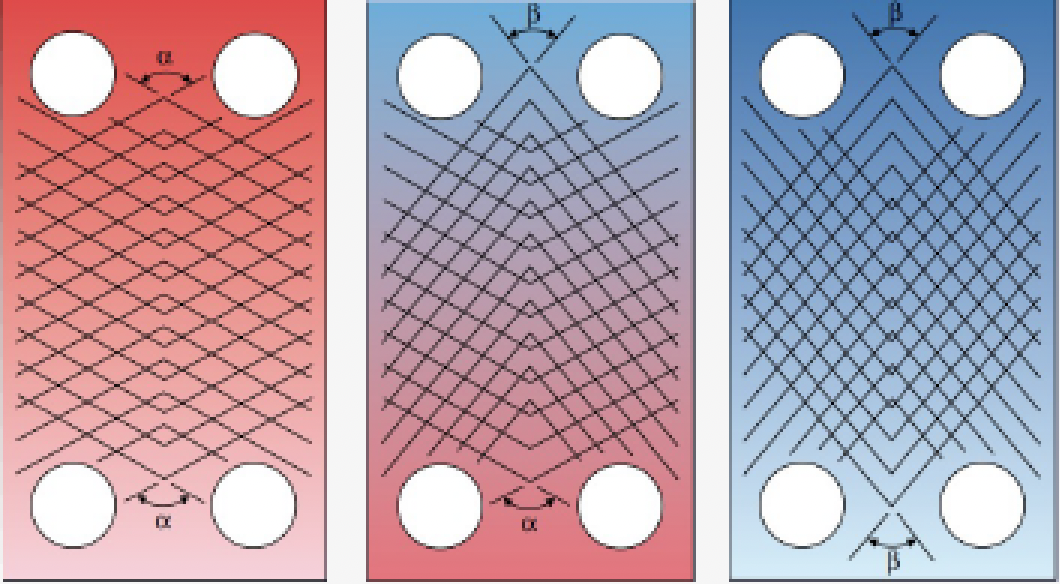

Plate pattern (fishbone)

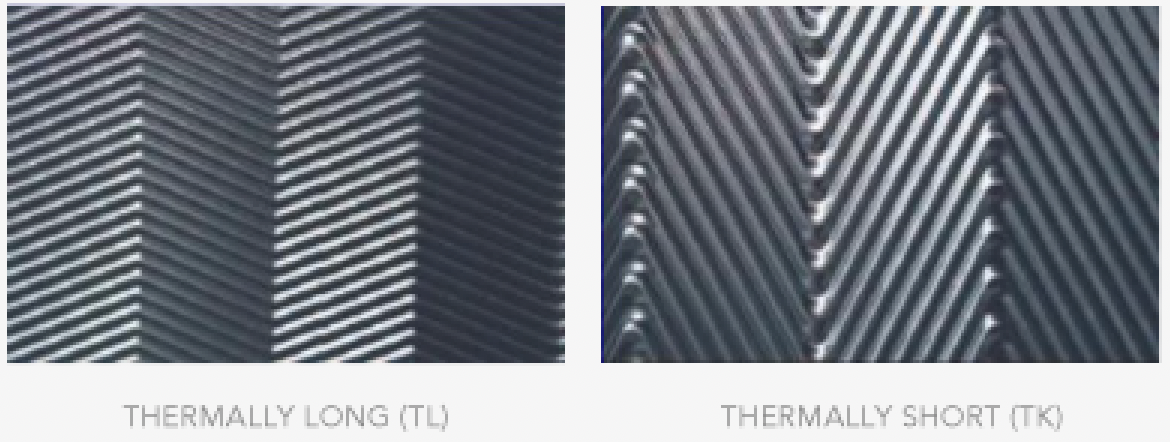

flow channels: TL-TL: TL, TK-TK: TK, TL-TK: TM Plate pack: TL, TK, TKTLx%, TM, TMTLx%, TKTMx% TX plate: almost 180° fishbone, extra long Non fishbone: e.g. FreeFlow Channel grouping: The number of channels is defined as “the number of plates - 1”. TK - short thermal length TM - medium thermal length TL - long thermal length |
